Mechanic's Items

1. 12V Battery jump
2. Weekly Maintenance

12V Battery Jump

Charging the 12V battery does not charge the high-voltage system. The vehicle will not start if the 12V battery is dead, even if the HV batteries have a healthy SOC. In order to restart the vehicle, the 12V battery must be jump-started.

⇑

Weekly Maintenance

• Verify the functionality of interior and exterior lights
• Inspect low-voltage battery performance
• Activate and inspect exterior lamps and hazard warning lights for correct operation
• Verify horn operation
• Check windshield washer spray and wiper operation and replace blades as needed
• Check the following fluid levels, and fill if low:
  • Brakes
  • Coolant reservoir
  • Power steering
  • Windshield washer

• Inspect suspension and framework for damage, cracks or leaks
• Inspect steering and linkage system
• Inspect tire tread wear and correct pressure if needed
• Check windshield for cracks, chips, or pits
• HV and LV harnesses for wear and securement
• Check the following for cracks/leaks/damage:
  • Transmission
  • Radiator
  • A/C hoses
  • Heater

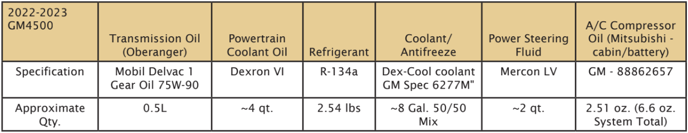

System Fluid Levels and Specifications

⇑
