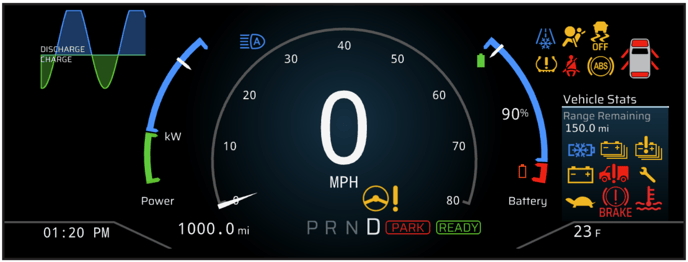

Bus Dashboard Symbols

	High beams illuminated		Door is open
	Icy road conditions		HV low SoC
	Cold HV battery		HV battery fault
	Airbags malfunctioning		Reduced performance - vehicle will only drive slow speeds
	Loss of traction		Brake warning lamp
	TPMS warning		Coolant overheating
	Seatbelt warning		Parking brake
	Anti-lock braking system		Steering System Malfunction

	12V CHARGE SYSTEM WARNING Illuminates when there is an issue with the vehicle’s 12V charge system. This could be a result of a 12V charge system fault or a low charge on the 12V battery
	SYSTEM MALFUNCTION* Illuminates when a debilitating fault or defect has been detected. Do not operate the vehicle after this lamp illuminates
	SERVICE REQUEST Illuminates when system service(s) are detected. Immediate stop is not required. Notify Supervisor or Service Provider at earliest convenience
	VEHICLE READY Illuminates a flashing orange when the vehicle turns on. Once the HV system is active and ready, it illuminates a solid green and you can initiate vehicle movement

*When the SYSTEM MALFUNCTION light starts flashing, you MUST IMMEDIATELY STOP the vehicle and contact the Supervisor or Service Provider.

For additional details on the Lightning buses, please refer to the Lightning Supplementary Owner's Manual
